Alignment
Discover accurate rail alignment tools for every rail and weld. Align rail in three dimensions – vertical, lateral and twist – with the trusted manual A-frame or choose our innovative i+align technology for an automated, data-backed approach.
What are Alignment products and how do they work?
Rail alignment is critical to welding accurate and durable welds, preventing defects and ensuring a long weld lifespan.
Pandrol alignment tools set the rail across all three planes – vertical (peak), lateral, and twist (cant) – even on curved track, where accurate alignment is hardest to judge by eye.
Choose the well-established A-frame for manual alignment, or i+align if you want an automated approach with built-in data capture. Both mount directly onto the fastener for a stable, secure fit, and work with most Fastclip and screwed fasteners. Adapters are available for other fastener types.
Aligns rail in three dimensions — vertical, lateral and twist — for accurate weld geometry.
Mounts securely onto the fastener, keeping the tool stable during use.
Compatible with most Fastclip and screwed fasteners, with adapters available for other types.
Product benefits
Greater Precision
Adjustment screws let you fine-tune alignment for accurate, repeatable welding geometry every time.
Built-in Safety
The equipment holds its position throughout use, keeping the welder secure and the process safer.
Faster Set-up
Adjustable height and inclination make preparing for welding quick, straightforward and consistent.
Overview
The range of straight edges enables the welder to ensure that the rail ends are correctly aligned before casting the aluminothermic weld. Several models are available, they have a laser-engraved graduation, are easy to use. The magnetic model is equipped with adjustable height knobs to facilitate the operation.
Downloads
Overview

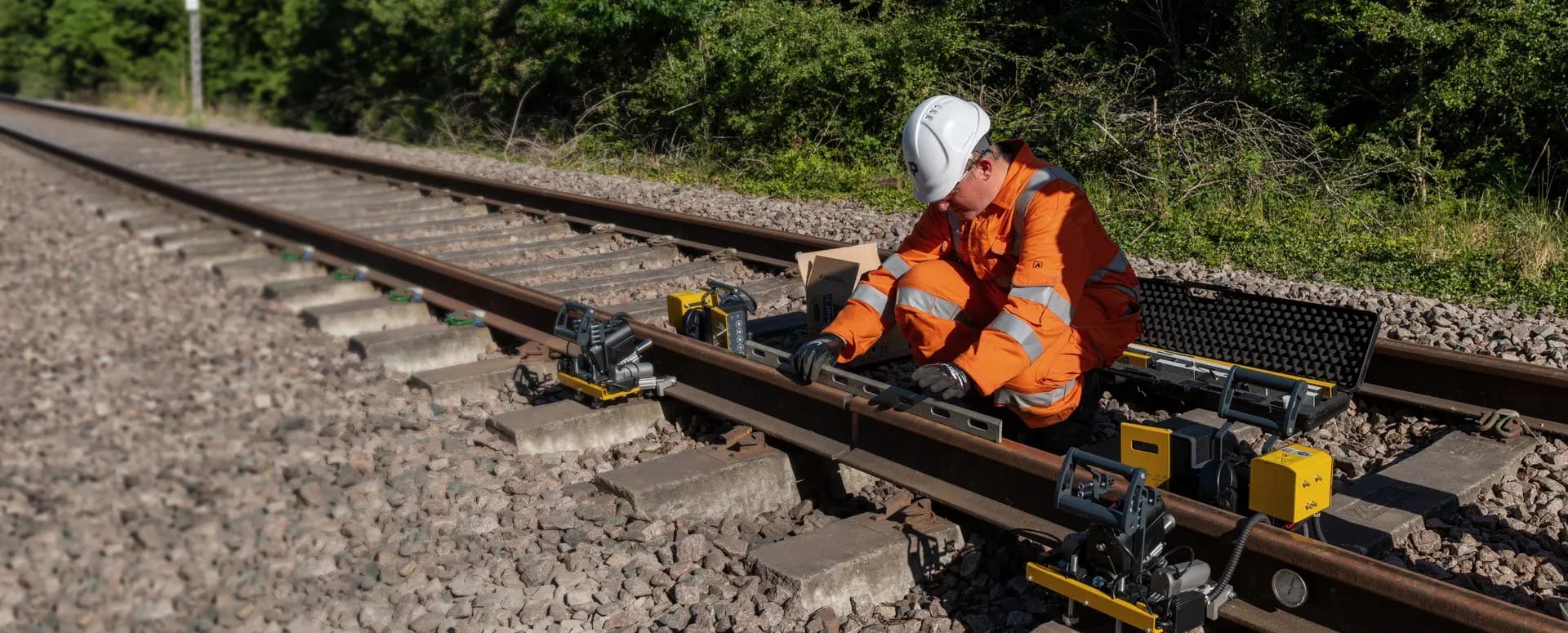

i+align brings automation to rail alignment. It aligns rail in all three dimensions while capturing alignment data as you work, giving you a digital record of the process and guaranteeing high accuracy at every weld. Built on the same secure, fastener-mounted set-up as the A-frame, it's simple to use and suits teams moving toward more automated, data-led track maintenance.
Downloads
Overview
The A-frame is Pandrol's well-established rail alignment tool, trusted across rail networks for manual, hands-on control. It aligns rail in three dimensions – vertical, lateral and twist – and mounts securely onto the fastener for a stable grip during use. It's the classic choice for teams who prefer a straightforward, hand-operated approach to pre-weld alignment.
Downloads
Related products
Below are other Pandrol products and equipment that can be integrated with this product. These complementary items can be used alongside this product, or are required for use with this product, or enhance the use of this product.
Discuss your Welding and track Equipment project with our team.
